4-Zone Volume Controller Kicker Genuine, 8V RCA Line Driver, OEM 48KXMARLC

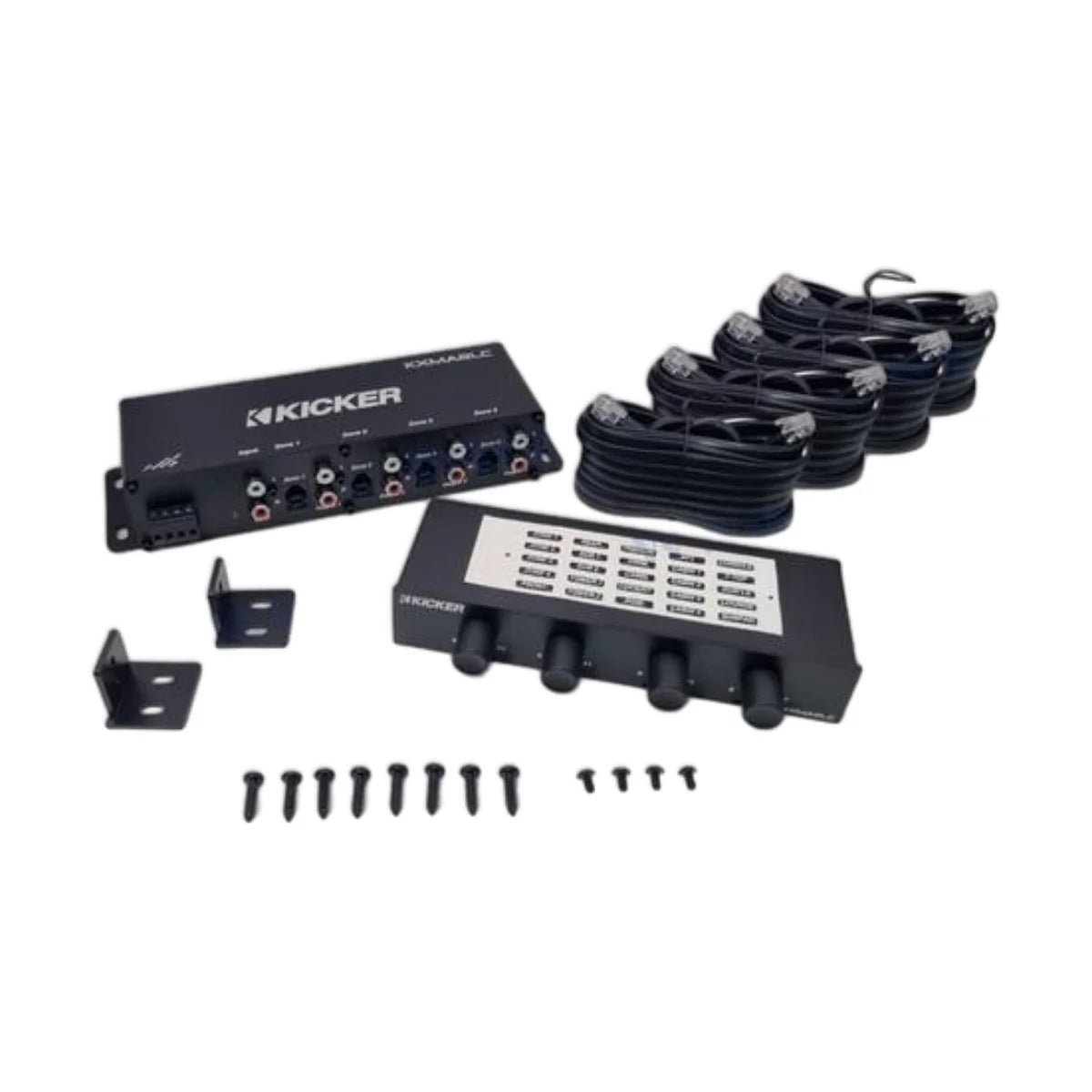

The KICKER KXMARLC (OEM 48KXMARLC) is a marine-grade 4-zone volume controller designed to give you independent level control for up to four stereo zones from a single source. It combines a hide-away processor with a half-DIN remote control panel, and also functions as an 8V line driver to deliver a hotter, cleaner signal to your amplifiers.

Key features

• 4 independent stereo zones (2-channel RCA input / 8-channel RCA output)
• 8V maximum output (all channels driven @ 1kHz, 14.4V, THD < 1%)
• Remote turn-on management: +12V constant, REM IN, and REM OUT for switching amplifiers on/off
• Large, easy-grip knobs plus customizable zone labels
• Mounting flexibility: surface/under-dash or flush mounting (hardware provided by manufacturer)

Technical specifications (KXMARLC)

• Fuse rating: 2A
• Frequency response: 20Hz–20kHz
• Input sensitivity: 0.125–4.0 VAC
• Signal-to-noise ratio: 100 dB
• Input impedance: 10kΩ
• Output impedance: 100kΩ

Dimensions (approx.)

• Processor unit: 8-7/8" W × 2-3/4" D × 1-5/8" H (225.1 × 69.3 × 42.2mm)
• Remote unit face: 7" W × 1-1/4" H; overall width (with brackets): 9-5/16" (178 × 31mm; 237mm overall)
• Flush-mount cutout: 25mm H × 178mm W × 62mm D

Fitment & compatibility notes

• Designed for marine/RV multi-zone systems and intended for use with KICKER amplifiers; connects via RCA in/out to your amps.
• Do not mount the processor or remote where it will be exposed to direct spray or splash.
• Install a 2A fuse within 7" (18cm) of the battery as specified in the owner’s manual.

Reference numbers: KICKER 48KXMARLC / Model KXMARLC. TMP Global SKU: KA48KXMARL. Confirm ratings, specification and fitment before ordering.
