5-Channel Marine Amplifier JL Audio M700/5, 700W Class D NexD, OEM 98274

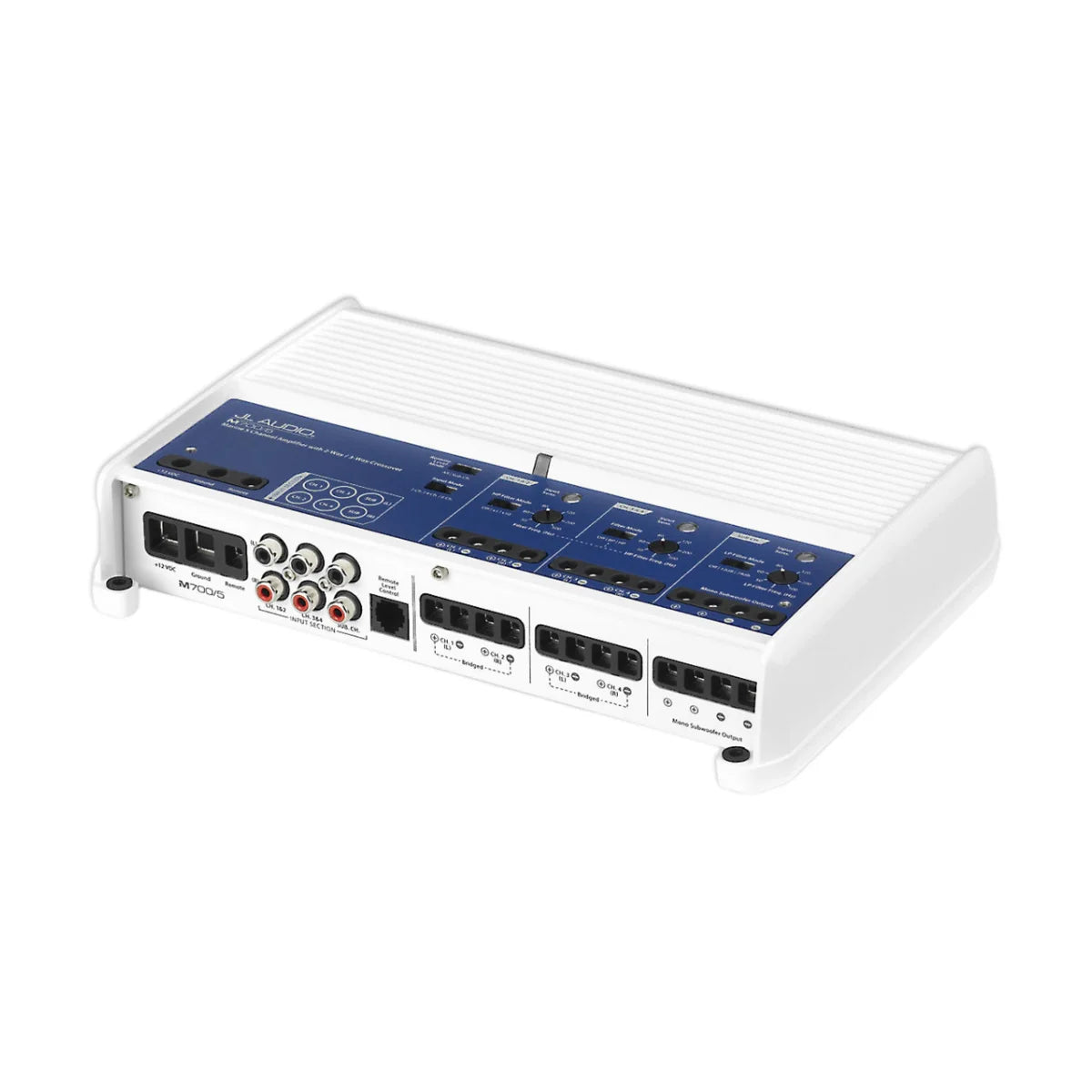

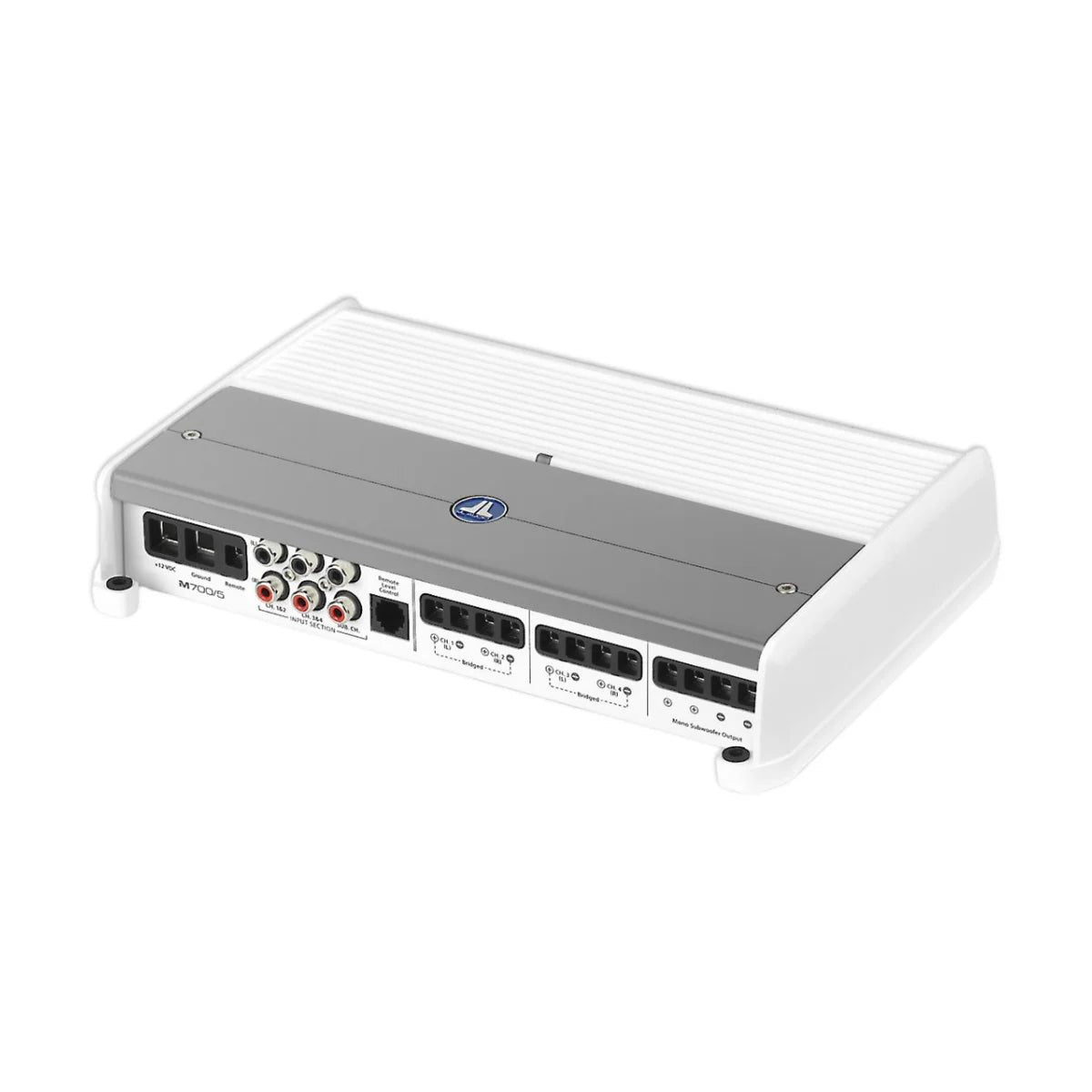

The JL Audio M700/5 is a compact 5-channel Class D (NexD0) marine system amplifier designed to power a full boat system from a single chassis: four full-range speaker channels plus a dedicated subwoofer channel. Supplied by Recambios Marinos (Recmar) and built to JL Audio marine standards for corrosion resistance and long-term reliability.

• JL Audio OEM / Mfr ref: 98274 (Model: M700/5)
• Total system power (14.4V, <1% THD+N): 75W x 4 @ 4a9 + 300W x 1 @ 2a9
• Main channels (Ch. 1 6): 75W x 4 @ 4a9 / 100W x 4 @ 2a9; bridgeable to 200W x 2 @ 4a9
• Sub channel power (Ch. 5): 180W @ 4a9 / 240W @ 3a9 / 300W @ 2a9
• Built-in crossovers: Ch. 1&2 high-pass (50 6000 Hz with x10 range); Ch. 3&4 high-pass or band-pass; sub low-pass 50 6500 Hz with 12/24 dB slope
• Inputs: 6-channel differential-balanced RCA inputs, 200 mV 64 V RMS; selectable 2/4/6 channel input modes
• Remote level control (optional): compatible with JL Audio HD-RLC or MHD-RLC (sub channel or full-system level control)
• Electrical requirements: 12V negative-ground systems only; recommended 4 AWG power/ground with a 60A fuse near the battery
• Protection & reliability: Advanced Rollback Protection helps prevent thermal shut-down during extended high-output use
• Dimensions (L x W x H): 10.23 in x 7.09 in x 2.05 in (260 x 180 x 52 mm)

Before ordering: confirm your speaker/subwoofer impedance, wiring plan (bridged vs. stereo), available mounting space, and power/ground cable sizing to ensure correct fitment and safe performance.
