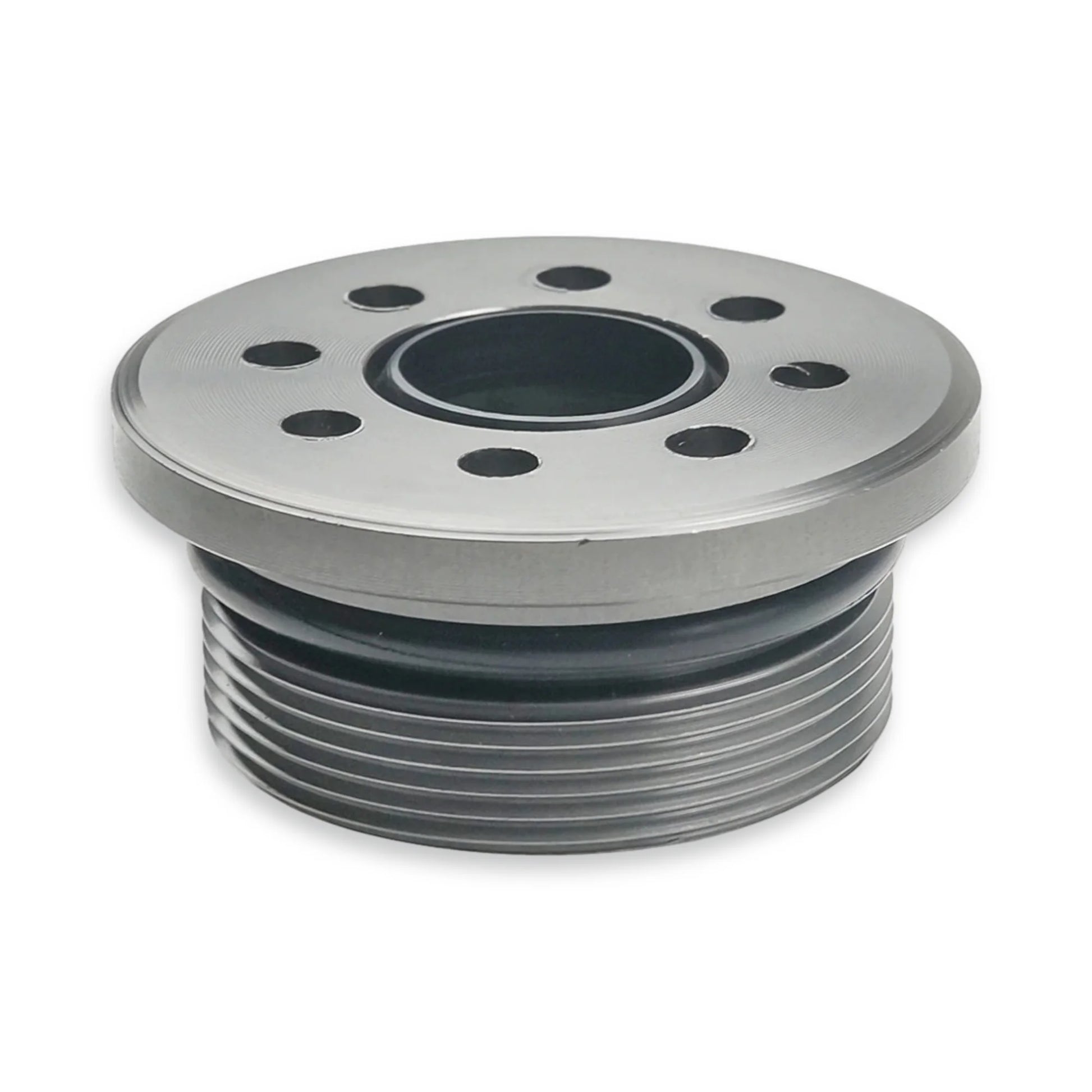

• Suzuki/Yamaha trim ram cap side view showing thread, o-ring, and top side.

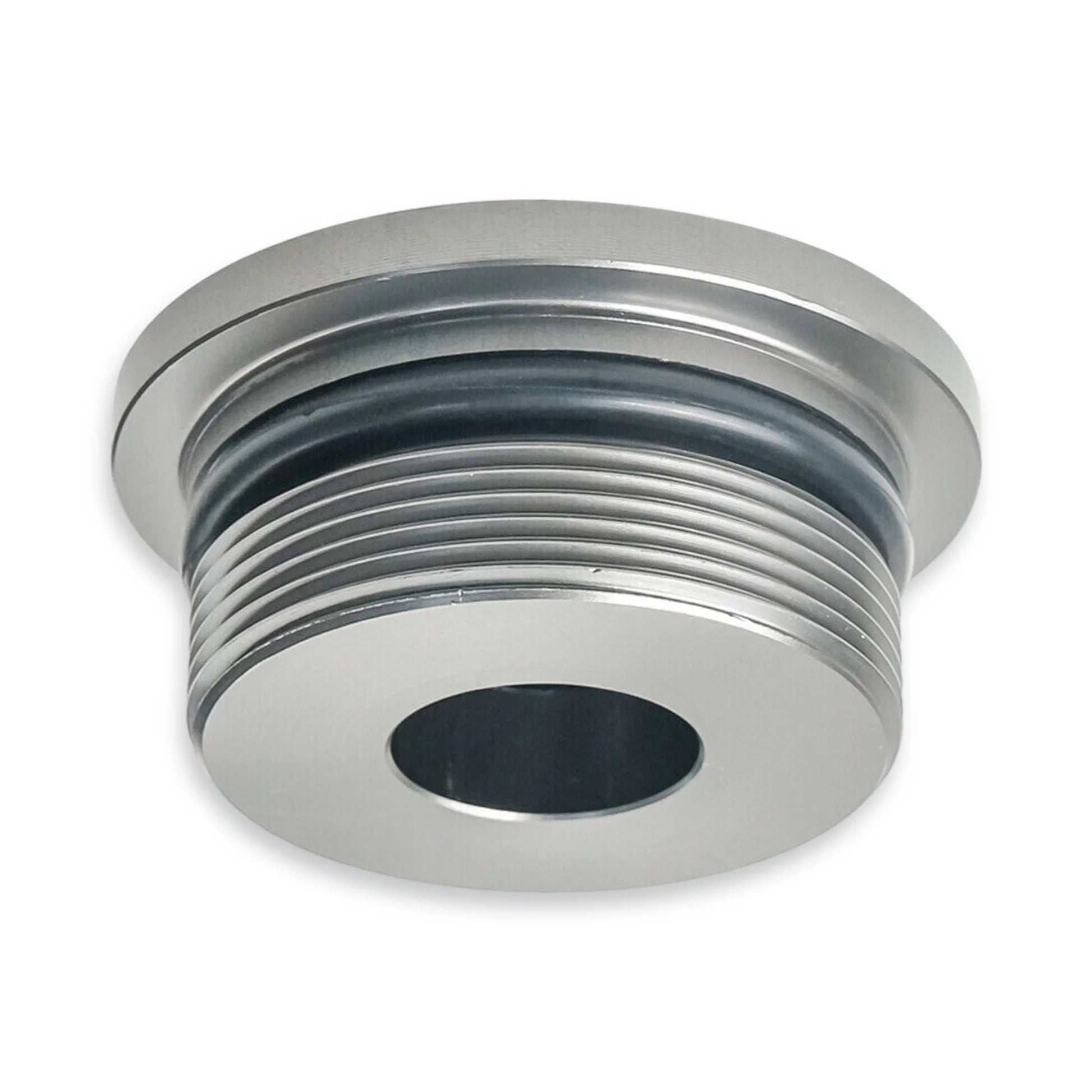

  • Suzuki/Yamaha trim ram cap bottom corner view showing thread, o-ring, and bottom side with the ram hole.

Yamaha, Tohatsu, Suzuki, and Honda | Recmar

Suzuki / Yamaha Trim Cylinder Head 48630-96J03 - Recmar REC48630-96J03

REC48630-96J03

🚚 Dispatched in 1-3 Days

⏱️ 14 Day Return Policy

In stock

Our stock levels are updated in real time, though occasional delays may occur. If inventory appears limited and you need confirmation before ordering, our customer service team is available via live chat to verify current availability. Look for the orange chat icon in the bottom right corner of your screen.

£39.89 GBP
£39.89 GBP
Tax included. Shipping calculated at checkout.
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shop safely with us
💬 Ask a question about this product

By signing up you agree to receive marketing emails and text messages. View our privacy policy and terms of service for more info.

Product Specifications and Features

REC48630-96J03 is a Recmar replacement trim cylinder head / screw cap for outboard power trim and tilt rams. It seals the trim cylinder and retains the internal hydraulic seals around the piston rod.

This part replaces Suzuki 48630-96J03 and related Suzuki trim cylinder cap references. It also cross-references with Yamaha trim cylinder screw / head numbers including 64E-43821-08 and 6AW-4380R-00.

This is the trim ram cylinder head / end cap with seals, not a complete trim cylinder assembly.



Key Specifications

Spec Details
Recmar SKU REC48630-96J03
Product type Trim cylinder head / screw cap
System Outboard power trim and tilt
Main Suzuki reference 48630-96J03
Main Yamaha references 64E-43821-08, 6AW-4380R-00
Function Seals the trim cylinder around the piston rod



Engine Compatibility

Engine family Models / applications Notes
Suzuki outboards DF-series trim systems using 48630-96J03 family Trim cylinder head / cap
Yamaha outboards Trim systems using 64E-43821 / 6AW-4380R references Trim cylinder head / cap
Outboard trim rams Hydraulic power trim cylinder applications Match by cap reference and trim unit design



OEM and Cross References

Brand Part number Notes
Recmar REC48630-96J03 Aftermarket replacement
Suzuki 48630-96J03 Main OEM reference
Suzuki 48630-96J02 Related reference
Suzuki 48630-96J01 Related reference
Suzuki 48630-96J00 Related reference
Yamaha 64E-43821-08 OEM reference
Yamaha 64E-43821-05-00 OEM reference
Yamaha 64E-43821-01-00 OEM reference
Yamaha 6AW-4380R-00 OEM reference
Yamaha 64E-43820-00 Related trim cap reference



Attributes

Field Value
Brand Recmar
MPN REC48630-96J03
Product category Outboard Trim Cylinder Head
Fits brand Suzuki, Yamaha
Replaces OEM 48630-96J03, 64E-43821-08, 6AW-4380R-00
System Power trim / tilt
Condition New



Important Fitment Notes

Check before ordering Why it matters
Trim cylinder cap design Different trim rams use different cap diameters and hole patterns
Suzuki 48630-96J03 family Use for trim systems listing this Suzuki cap reference
Yamaha 64E / 6AW references Use for Yamaha trim systems listing these screw/cap references
Complete trim cylinder This part is the cylinder head / cap, not the complete ram
