Power Tilt Trim Motor for Honda BF40/BF50 & Suzuki DF40A/DF50A/DF60A | Replaces 36120-ZW4-H12 | REC36120-ZW4-H12

REC36120-ZW4-H12

  • Free Shipping ✅

🚚 Dispatched in 1-3 Days

⏱️ 14 Day Return Policy

In stock

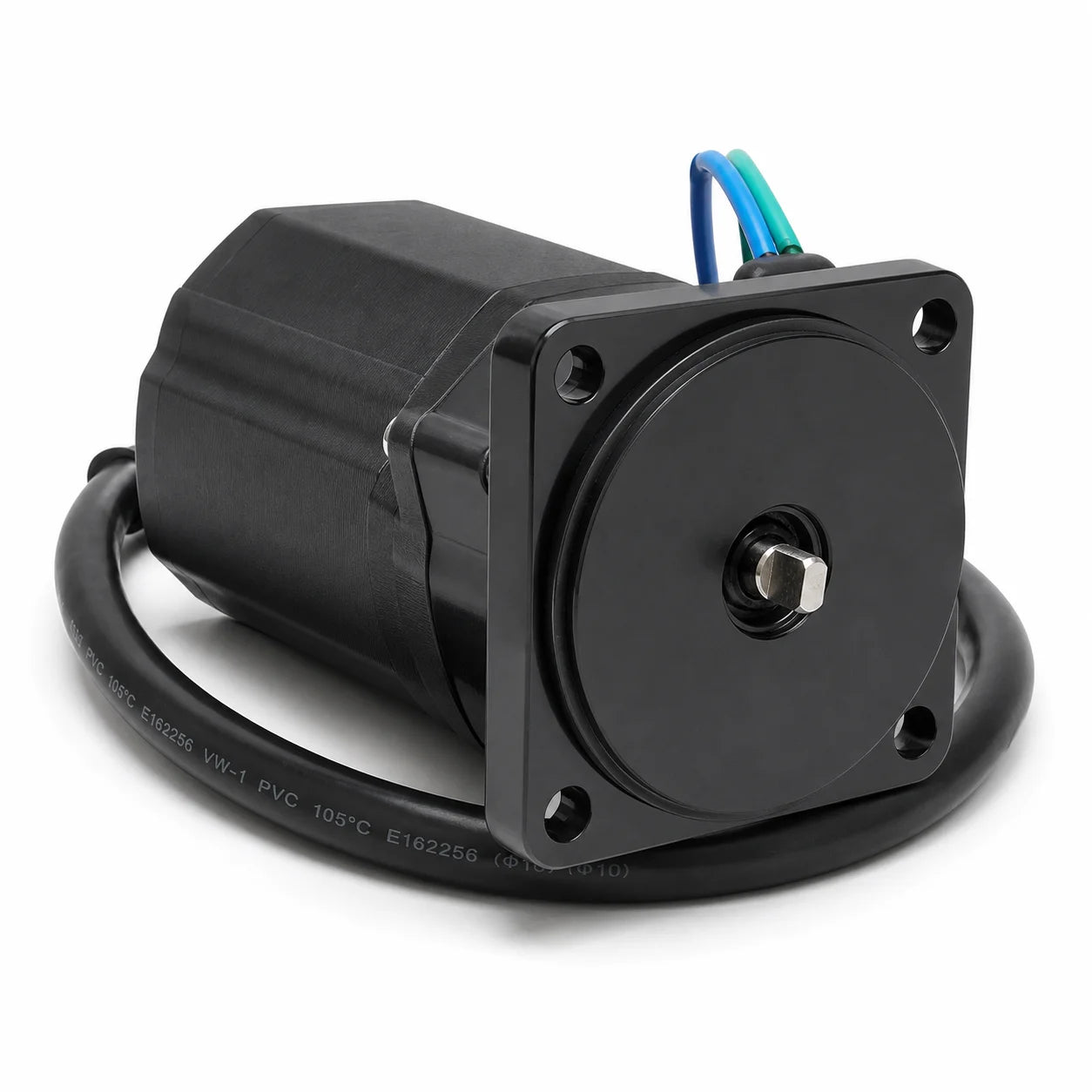

  • REC36120-ZW4-H12 power tilt trim motor with black 4-bolt flange and blade shaft for Honda and Suzuki outboards

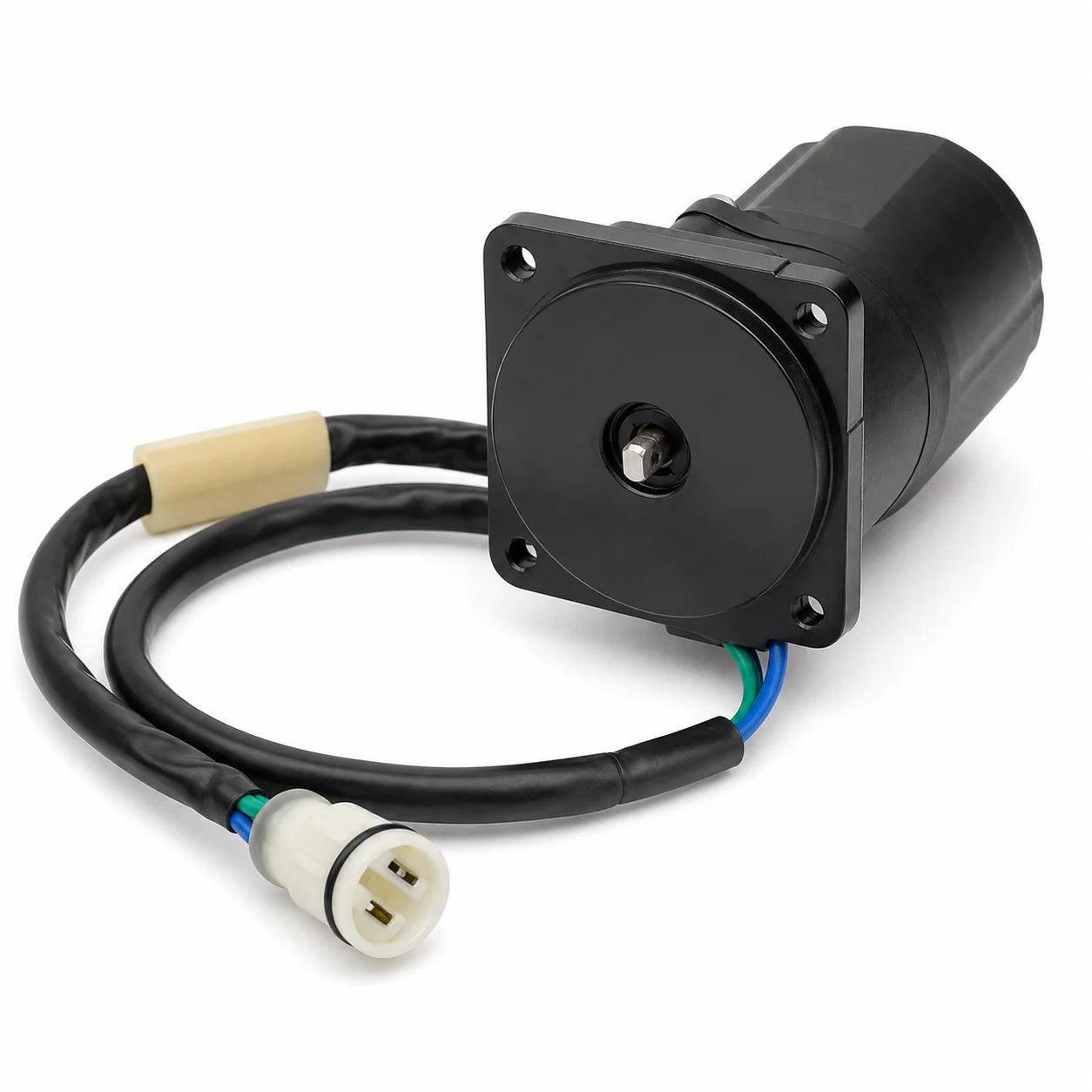

  • REC36120-ZW4-H12 trim motor showing two-wire cable, white connector and black motor body for Honda Suzuki outboards

Key features:

  • Suzuki OEM Ref: 38100-88L00 | 38100-88L11 | 38100-88L12
  • Honda OEM Ref: 36120-ZW4-H12 | 36120-ZW4-F12 | 36120-ZZ3-003
  • Fitment Models: Honda BF40, BF50 | Suzuki DF40A, DF50A and DF60A
  • Mount: 4-bolt flange Flat-blade armature shaft
  • Connection Type: 2-wire motor with plug connector
  • Voltage: 12V DC
£162.35 GBP
£162.35 GBP
Tax included. Shipping calculated at checkout.
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shop safely with us

We ship with

DHL
💬 Ask a question about this product

By signing up you agree to receive marketing emails and text messages. View our privacy policy and terms of service for more info.

Product Specifications and Features

Aftermarket 12V power tilt trim motor for selected Honda and Suzuki four-stroke outboards. Recmar REC36120-ZW4-H12 is the electric trim motor used to raise, lower and angle the outboard through the hydraulic tilt/trim assembly, restoring smooth trim response and proper trailering lift.

Honda 36120-ZW4-H12 fitment family and the Suzuki 38100-88L00 / 88L11 / 88L12 family. It uses a 4-bolt mounting flange, flat-blade shaft and 2-wire motor connection, which are the key physical identifiers buyers should match before ordering.

Honda BF40 / BF50 and Suzuki DF40A / DF50A / DF60A

Key specification Value
Product type Power tilt trim motor
Brand Recmar
Recmar part number REC36120-ZW4-H12
GTIN / EAN 8435422134361
Voltage 12V DC
Rotation RE / reverse-right, as commonly listed in aftermarket motor catalogs
Mounting style 4-bolt flange
Mounting hole spacing 62 mm on centre
Mounting ring OD 70 mm
Shaft type Flat-blade armature shaft
Shaft dimensions 8 mm L x 4 mm W x 6 mm T
Connection type 2-wire motor with plug connector
Field case OD Approx. 67 mm
Field case length Approx. 100 mm to rear tip



Verified fitment summary Value
Honda confirmed OEM fitment BF40 and BF50 four-stroke outboards using 36120-ZW4-H12
Honda model-year evidence 2004-on BF40 / BF50 OEM diagrams
Suzuki confirmed family fitment DF40A, DF50A and DF60A four-stroke outboards using 38100-88L00, 38100-88L11 or 38100-88L12
Suzuki model-year evidence 2010-on / 2011-on DF40A / DF50A / DF60A trim-cylinder / PTT diagrams
Additional Honda fitment note Some aftermarket catalogs also cross-list selected BF60 applications, but these should be confirmed against the existing OEM motor number before ordering



OEM and cross references Value
Honda 36120-ZW4-H12
Honda commonly cross-listed in aftermarket catalogs 36120-ZW4-F12, 36120-ZZ3-003
Suzuki 38100-88L00, 38100-88L11, 38100-88L12
ARCO 6237
Arrowhead / Total Power 430-22158
Additional aftermarket references seen in market listings 430-22111, TRM0107



Included / installation notes Value
Typical supplied item Tilt trim motor assembly

Important check before ordering Match the 4-bolt flange, 62 mm bolt spacing, flat-blade shaft and existing OEM number on the old motor



Structured data / feed field Value
Brand Recmar
MPN REC36120-ZW4-H12
GTIN 8435422134361
Condition New
Product type Tilt Trim Motor
Voltage 12V
Compatible brands Honda, Suzuki
Primary OEM reference 36120-ZW4-H12
Additional references 38100-88L00, 38100-88L11, 38100-88L12, 6237, 430-22158
