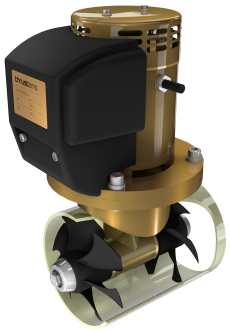

THRUSTEMS BOW THRUSTER S100 TUNNEL 185 TW 24V | OEM 64007 | GOLDENSHIP

GS64007

Free Shipping ✅

🚚 Dispatched in 1-3 Days

⏱️ 14 Day Return Policy

Out of stock

Be the first to know when this item is back in stock.

Enter your email below and we'll notify you instantly so you don't miss out.

Prefer not to inbox watch?

You can still order now and we'll ship as soon as it's available, typically within 3-4 weeks.

Sold out

£2,019.20 GBP

Tax included. Shipping calculated at checkout.

Shop safely with us

We ship with

💬 Ask a question about this product

Product Specifications and Features

The BOW THRUSTER S100 TUNNEL 185 TW 24V by OEM 64007 is a high-quality and reliable bow thruster designed to enhance the maneuverability and control of your vessel. Manufactured by GoldenShip, a trusted name in the marine industry, this bow thruster is built to withstand the harsh marine environment and deliver exceptional performance.

S100 12V and 24V / 185mm BOW THRUSTER

Operating time 3 minutes continuous operation	Typical Boat Size 11.5 - 16 / 38' - 52' (m / ft)	Output Power 6 kW
Weight 27.340kg	Propulsion System Twin 6-blade composite propellers	Tunnel Diameter 185 / 7.3 (mm / in)
DC system 12V and 24V	Thrust Force at 10.5V/21V 100 / 220 (kgf / Lbs)

Made of seawater resistant bronze, all shaft and bearing surfaces are CNC machined to 2/1000mm accuracy
Its hydrodynamic shape ensures low water resistance and thus less cavitation
Heavy-duty seal designed for separation of two media, combining excellent contamination protection and supreme sealing performance
Gear-damaging vibrations caused by the action of the twin propellers are minimized due to crucial vibration damping capacity of the seals
Easy to replace anti-electrolysis aluminium anode
Hardened spiro-conical gears, developed for us by leading German manufacturers. The precise elemental geometry leads to a quieter running of the gear sets and longer lifetime
EMS S100 is probably our most versatile bow thruster system. Excellent choice for 12-15m motor yachts and deep footed sailing yachts, whose owners require utmost reliability in virtually all environmental situations, yet appropriate for vessels up to 16m in length
Utilizing the same mechanical components as the even more powerful EMS S120, its smaller DC motor ensures better energy efficiency translating into lower amp draws and more compact installation size
Our skewback six-blade propellers generate less cavitation, which, in addition to the carefully chosen hydroacoustic design, results in great noise reductions

Voltage (V)	12 V and 24 V
Thrust (kgf)	100kgf
Power (kW)	6
Motor, reversible D.C.	Yes
Internal tunnel diameter (mm)	185
Weight (kg)	27.340
Max. operating time (minutes)	4
Size A in mm, see drawing	134
Size B in mm, see drawing	454
Size C in mm, see drawing	140
Size D min./max. in mm, see drawing	400/800
Size E in mm, see drawing	200
Size F, diameter in mm, see drawing	158
Size G min. in mm, see drawing	185
Size H, diameter in mm, see drawing	185

��
