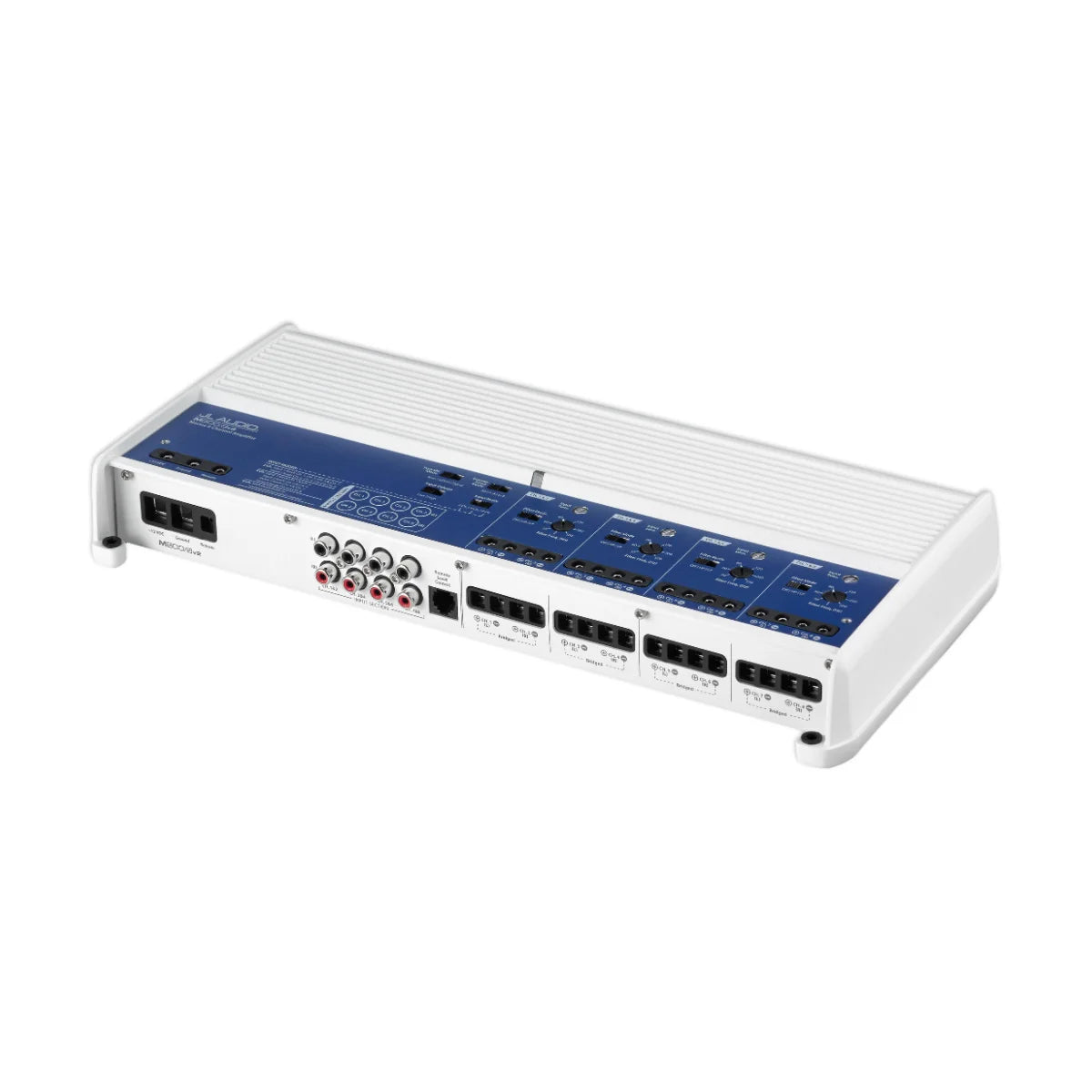

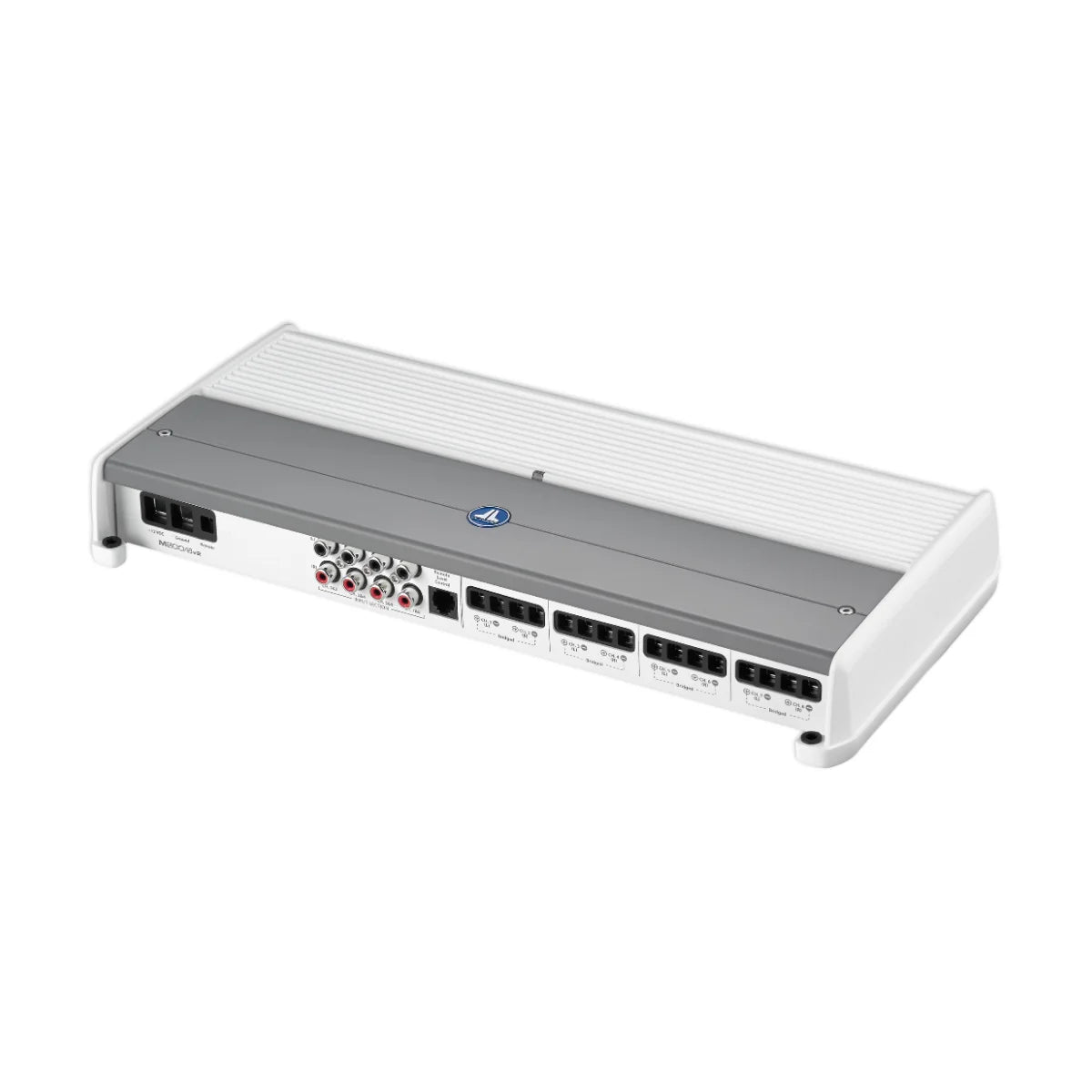

Marine Amplifier 8-Channel JL Audio M800/8v2 Genuine, 800W Class D NexD, OEM 800/8V2 (JLM800/8V2)

The JL Audio M800/8v2 is a genuine 8-channel, full-range Class D (NexD™) marine amplifier built for high-output, low-distortion performance in harsh onboard environments. This is an ideal solution for powering multiple cockpit/tower speakers or building flexible multi-zone systems with bridgeable channels.

OEM reference: M800/8v2 (also commonly referenced as 800/8V2). TMP Global SKU: JLM800/8V2. Supplied via Recambios Marinos (Recmar).

• Channels: 8 (full-range)
• RMS power @ 14.4V: 75W x 8 @ 4Ω / 100W x 8 @ 2Ω
• Bridged output: 200W x 4 @ 4Ω (bridged)
• Crossovers: 12 dB/oct per channel bank, selectable HPF or LPF, variable 50–500 Hz (defeatable)
• Input flexibility: 2/4/6/8-channel input mode selection; dual-range differential-balanced inputs
• Turn-on options: remote turn-on, signal-sensing and DC-offset sensing (v2 Spec feature set)
• Optional remote level control: compatible with JL Audio HD-RLC (sold separately) to control 2, 4 or all 8 channels
• Marine-ready build: powder-coated finishes, gasketed control cover and stainless hardware; Advanced Rollback Protection helps reduce thermal shut-downs
• Wiring / protection: minimum 4 AWG power/ground; 80A fuse requirement (AFS/AGU/MaxiFuse type)
• Approx. dimensions (H x W x D): 2.05 in (52 mm) x 14.73 in (374 mm) x 7.09 in (180 mm)

Before ordering: Confirm system voltage (12V negative-ground), speaker impedance, wiring gauge, and total load per channel/bridged pair to ensure correct fitment and to prevent equipment damage.
