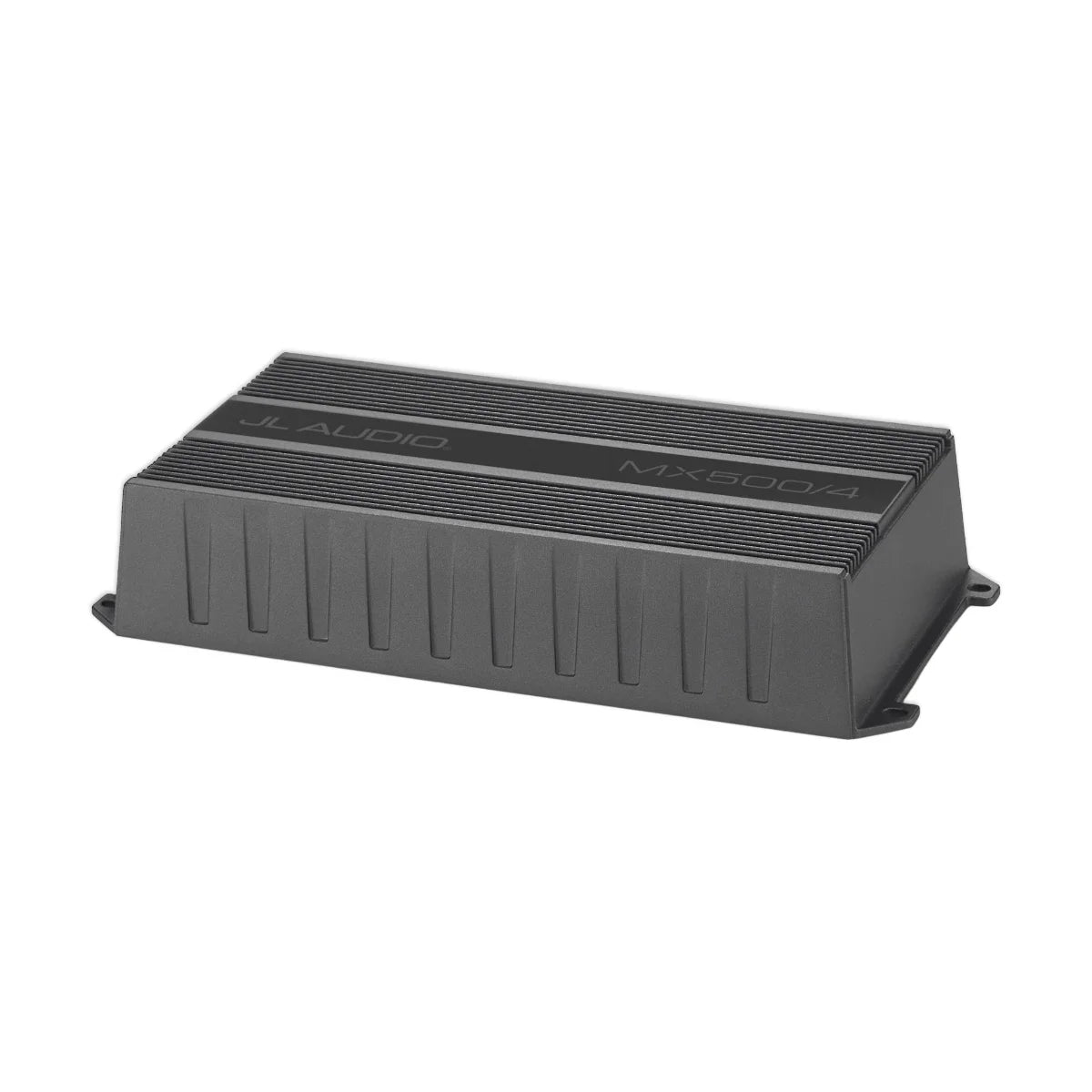

• Image of an audio amplifier on a white background.

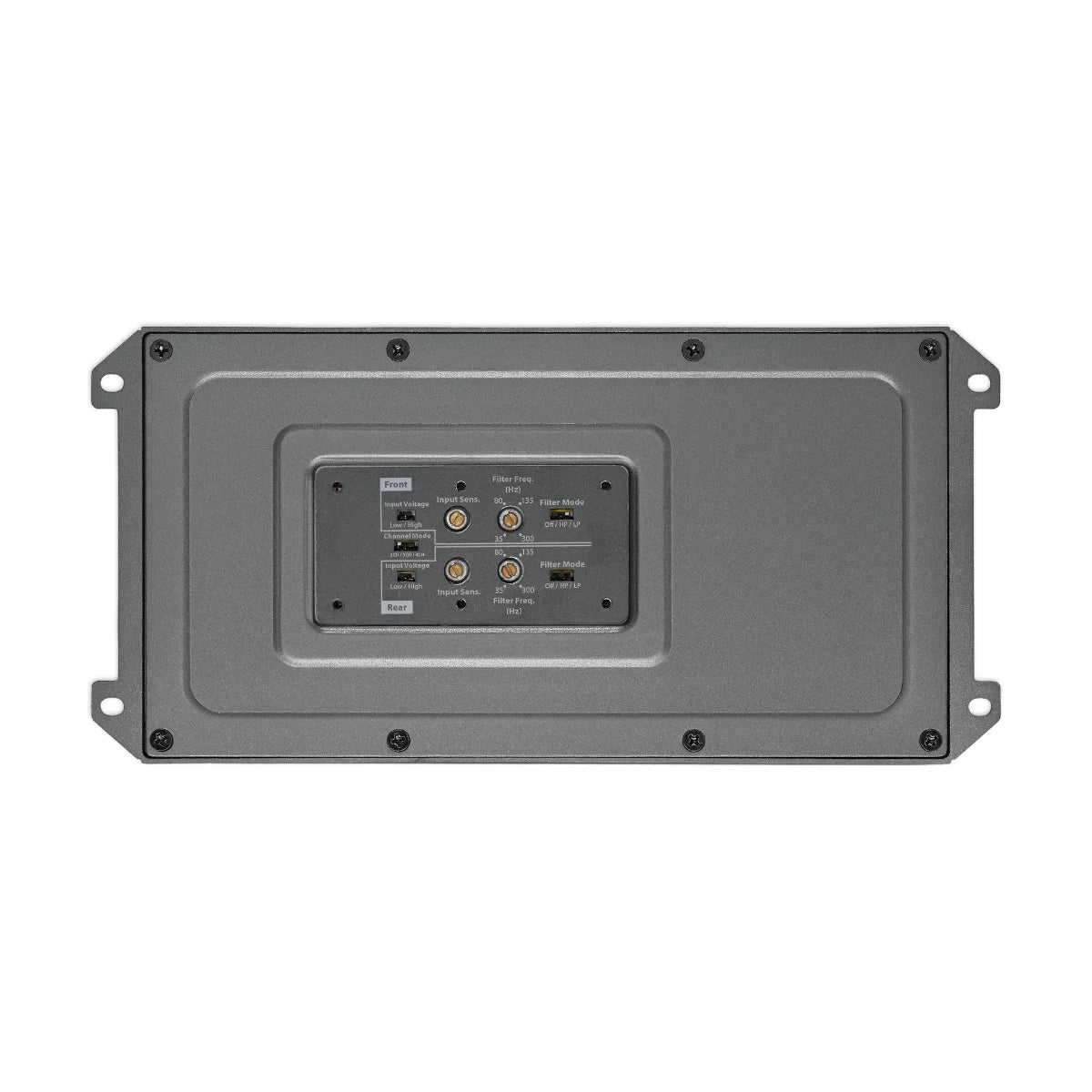

  • Image of an audio amplifier on a white background.

| Recmar

4-Channel Marine Amplifier JL Audio MX500/4 500W RMS, OEM 98408 (010-03106-00)

JLMX500/4

  • Free Shipping ✅

Out of stock

Be the first to know when this item is back in stock.

Enter your email below and we'll notify you instantly so you don't miss out.

Prefer not to inbox watch?

You can still order now and we'll ship as soon as it's available, typically within 3-4 weeks.

⏱️ 14 Day Return Policy

Out of stock
Sold out
£408.96 GBP
£408.96 GBP
Tax included. Shipping calculated at checkout.
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shop safely with us
💬 Ask a question about this product

By signing up you agree to receive marketing emails and text messages. View our privacy policy and terms of service for more info.

Product Specifications and Features

The JL Audio MX500/4 is a compact, full-range 4-channel Class D marine/powersports amplifier built for harsh environments, featuring an IPX7 water-resistance rating (with the control cover installed). It delivers clean, reliable power for four speakers, or can be bridged to run higher-power 2-channel setups.

Key features & specs

  • Total power: 500W RMS (4-channel)
  • Rated power @ 14.4V, <1% THD+N: 70W x 4 @ 4Ω; 90W x 4 @ 3Ω; 125W x 4 @ 2Ω; 250W x 2 bridged @ 4Ω
  • Rated power @ 12.5V, <1% THD+N: 55W x 4 @ 4Ω; 70W x 4 @ 3Ω; 90W x 4 @ 2Ω; 180W x 2 bridged @ 4Ω
  • Frequency response: 20 Hz – 20 kHz (+0, -1 dB)
  • Input voltage range: 250 mV–4 V (Low) or 750 mV–15 V (High); supports RCA/preamp signals and speaker-level signals (via speaker-wire-to-RCA splice/adapter)
  • Crossovers: selectable high-pass or low-pass, defeatable; 35–300 Hz, 12 dB/octave
  • Channel input mode: 2 / 3 / 4-channel
  • Recommended protection: 50A main fuse (not included); install within 18 in (45 cm) of the battery when this is the only device on the main feed
  • Minimum power/ground wire: 4 AWG
  • Dimensions (W x D x H): 9.33 x 4.50 x 1.77 in (237 x 114.5 x 45 mm)
  • What’s included: amplifier, (4) stainless steel mounting screws, user manual

OEM references

  • JL Audio model: MX500/4
  • OEM ref: 98408
  • Alt. ref: 010-03106-00
  • UPC: 699440984089

Installation & compatibility notes

  • Designed for 12V negative-ground electrical systems only.
  • Verify speaker loads and wiring before installation (supports 2Ω operation per channel and bridged operation at 4Ω, per published power ratings).
  • Confirm space, cable sizing, and fuse placement before ordering/installation.
