Active Anchors variable pitch and rode angle: reading the diagrams

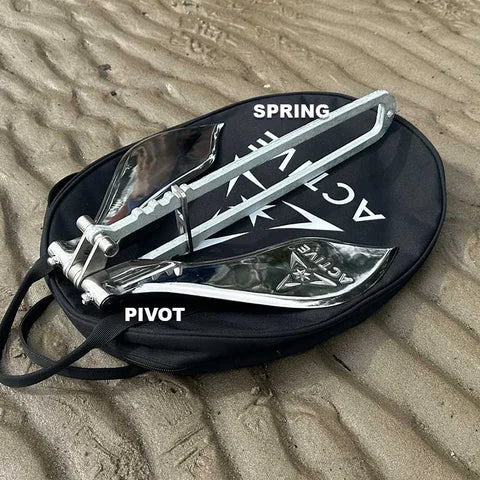

Active Anchor on its bag with spring and pivot movement marked by arrows.

Active Anchors uses variable-pitch and rode-angle diagrams to explain its design. They illustrate relationships between fluke angle, the direction of pull and the surface presented to the ground. They do not, on their own, establish holding capacity or a safe scope for a particular boat.

Our approach is to make the assumptions visible. A simple triangle or projected-area calculation can be checked mathematically, while its application to a moving boat and a variable seabed remains a separate engineering and seamanship question.

Key points

  • Scope relates rode length to vertical distance, including the height of the boat's attachment point.
  • A taut straight-line model is not a full description of chain catenary or real sea loads.
  • Projected area and measured holding force are different quantities.
  • No safe short-scope recommendation follows from this illustration.

Separate pitch, scope and catenary

Pitch is the angle of the flukes relative to the shank. Scope is the ratio between the length of rode and the relevant vertical distance from the seabed to the boat's rode-contact point. Catenary describes the curve in a suspended length such as chain.

The manufacturer's load analysis discusses these together, but they should not be treated as one measurement. Changing the amount of rode changes one part of the arrangement; changing fluke pitch changes another.

The source also discusses material buried below the seabed and the effect of its pull direction. That adds another reason why a diagram above the seabed is not a complete model of the forces acting on an embedded anchor.

What a transparent straight-line calculation shows

Consider an illustrative right-angled triangle with a fully straight rode of length L and vertical separation H. If scope S means L divided by H, the rode angle above horizontal is arcsin(1/S).



Illustrative straight-line geometry only, not operating recommendations
Illustrative scope Calculated angle
7:1 Approximately 8.2 degrees
5:1 Approximately 11.5 degrees
3:1 Approximately 19.5 degrees



These values use the rode length as the sloping side. If a calculation instead uses horizontal separation, or different definitions and inputs, it produces different values. The method and definition must be stated before comparing numbers.

The example excludes sag, seabed slope, tide changes, vessel movement and the behaviour of the embedded assembly. It cannot establish a safety margin or determine what a particular boat should use.

Projected area is not a holding-force test

For an ideal flat surface, changing its angle changes the area projected perpendicular to a chosen direction. In a simple example, the projected fraction is proportional to the sine of that angle. At 15 degrees it is about 0.259; at 30 degrees it is 0.5, approximately 1.93 times as large.

That is a geometric relationship. It does not demonstrate a matching increase in real anchor holding force. Embedment, ground properties, anchor geometry and the direction and history of loading are not captured by that one ratio.

The manufacturer's pitch illustration is therefore useful for explaining the idea of a changing working surface. We do not convert it into a claim that the product delivers twice the holding power for every application.

How the design argument relates to Active Anchors

The manufacturer's larger-vessel explanation presents variable pitch as a way of changing the fluke relationship during engagement and loading. It also distinguishes the fitted pivot stop, which disables release while retaining the described pitch behaviour.

Those are product-specific explanations. They do not remove the need to establish the correct configuration or justify replacing a boat's rode arrangement from a diagram. A generic allowance for swell cannot be calculated responsibly without the actual geometry and other necessary inputs.

Our view: use diagrams to explain, not prescribe

A helpful diagram lets the reader see which assumption is being made and which question remains unanswered. That is more valuable than an apparently precise safety margin detached from a vessel and conditions.

Use the brand hub for the wider explanation and the model details for the actual product. Resolve operational scope and configuration through current instructions and competent vessel-specific advice, rather than using this mathematical illustration as a procedure.

Frequently asked questions

Does the 3:1 row recommend using that scope?

No. It is an illustrative triangle calculation, not an operating recommendation or evidence of suitability for a boat.

Why can straight-line calculations differ?

Different definitions and inputs, including whether a length represents the sloping rode or horizontal separation, change the result. State the model before comparing values.

Can changing projected area prove a holding-force multiplier?

No. Real holding depends on the anchor, embedment, seabed and loading, not geometry alone.
