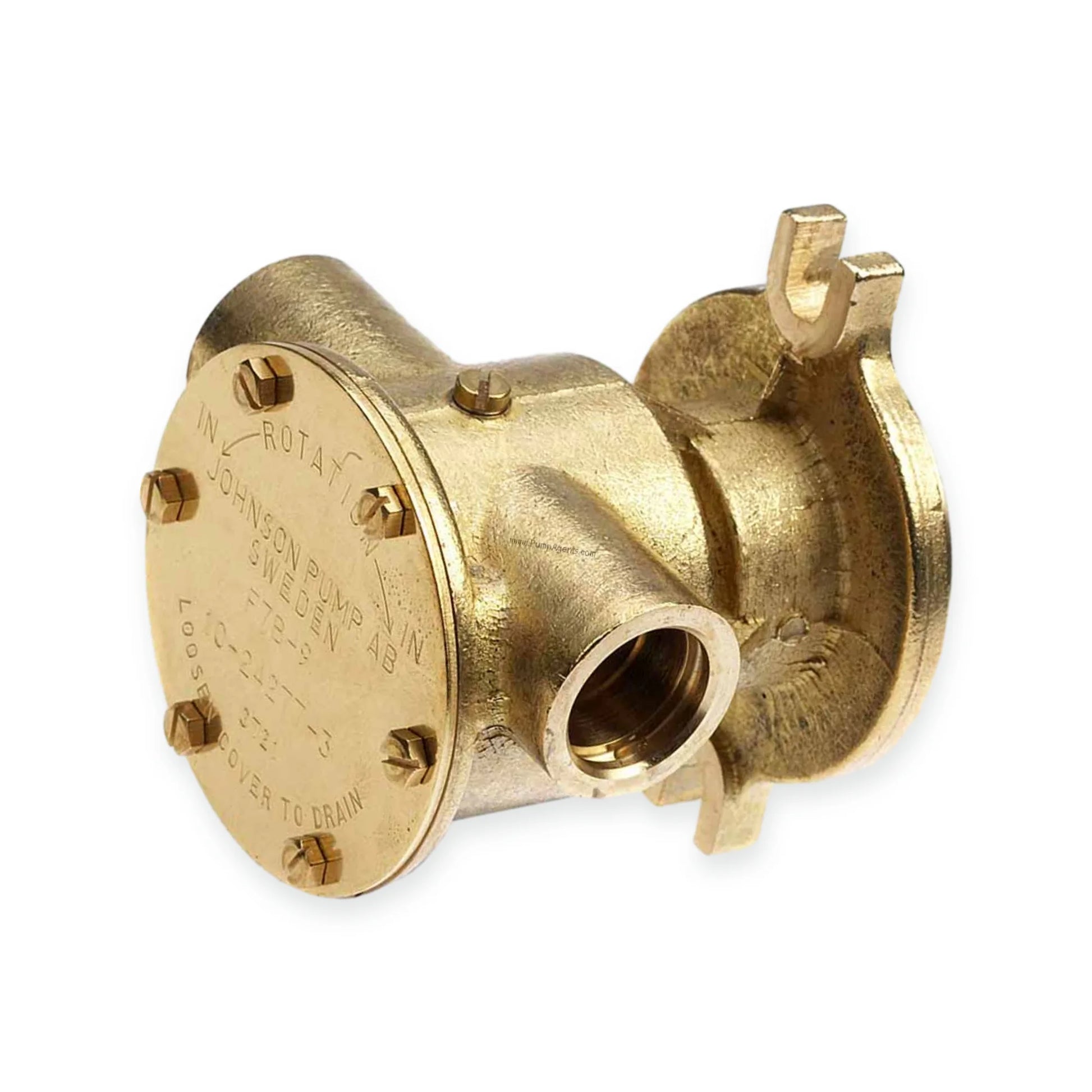

• Brass Johnson raw water pump, view showing front face plate and hose ports.

Volvo Penta | Recmar

Johnson Pump F7B-9 Raw Water Pump for Volvo Penta 31/41 – 10-24277-3

JOH10-24277-3

  • Free Shipping ✅

🚚 Dispatched in 1-3 Days

⏱️ 14 Day Return Policy

In stock

Key features:

  • Johnson MPN: 10-24277-3
  • GTIN: 7330717014674
  • Replaces Volvo Penta: 858469 / 858470 / 858701
  • Pump type: F7B-9 bronze
  • Connection: push-in pipe
  • Internal impeller: 09-1028BT-1
  • Fits: selected 30 / 31 / 40 / 41 diesel
  • Not included: external O-rings
£364.06 GBP
£364.06 GBP
Tax included. Shipping calculated at checkout.
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shop safely with us

We ship with

EVRI DHL Royal Mail
💬 Ask a question about this product

By signing up you agree to receive marketing emails and text messages. View our privacy policy and terms of service for more info.

Product Specifications and Features

Johnson Pump F7B-9 flexible-impeller raw-water pump for selected Volvo Penta 30/31/40/41-family marine diesel engines. It replaces Volvo Penta 858469 and 858701 and uses a push-in pipe connection.

Fitment check: This is the push-in pipe-connection version, not the hose-tail version. Match the pump reference, connection style, mounting flange and engine serial. Never run a flexible-impeller pump dry.

Product specifications

Field Detail
Product type Flexible-impeller raw-water pump
Brand / MPN Johnson Pump / 10-24277-3
GTIN 7330717014674
Pump family / body F7B-9 / bronze
Mounting / shaft Flange mounted / 16mm shaft
Connection Push-in pipe connection; not threaded or hose-tail
Approximate dimensions 120 × 112 × 106mm
Internal impeller Johnson 09-1028BT-1 / Volvo 3841697

Engine and drive fitment

Manufacturer Model / application Qualifier Status
Volvo Penta AD30A Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta AQAD30A Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta MD30A Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta TAMD30A Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta TMD30A Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta AD31A Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta AD31B Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta AQAD31A Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta TAMD31A Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta TAMD31B Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta TMD31A Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta TMD31B Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta AQD40A Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta MD40A Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta TAMD40B Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta TMD40A Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta TMD40B Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta TMD40C Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta AD41A Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta AD41B Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta AQAD41A Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta AQD41A Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta D41A Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta D41B Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta TAMD41A Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta TAMD41B Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta TAMD41H-A Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta TAMD41M-A Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta TMD41A Old-style/push-in connection; match reference and serial conditional check range
Volvo Penta TMD41B Old-style/push-in connection; match reference and serial conditional check range

Part-number cross-references

Brand / source Reference
Johnson Pump 10-24277-3
Volvo Penta 858469 / 858470 / 858701
Service parts Impeller 09-1028BT-1 / REC3841697; O-rings 949658 / 968971; drive cross piece REC858467

What is included

  • 1 × complete Johnson F7B-9 raw-water pump with internal impeller



Frequently asked questions

What is the main selection difference?

This version has a push-in pipe connection. It is not the hose-tail pump.

Which impeller services it?

The evidenced impeller family is Johnson 09-1028B, cross-referenced as REC3841697.

Are service parts included?

The screenshot lists related impeller, gasket and drive-cross-piece references but does not state that spares are included.

Compatibility responsibility: Marine parts can vary by engine suffix, serial number, model year and the unit already fitted. Match all stated selection points before installation.
