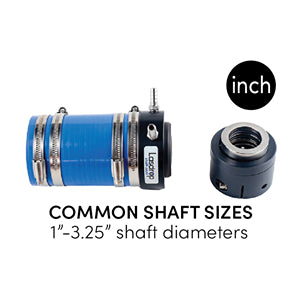

Lasdrop Gen2 Mechanical Face Shaft Seal, Imperial Sizing for 1 to 5 inch Shafts

Lasdrop Generation2 (Gen2) is a mechanical face-type, dripless shaft seal for inboard propeller shafts. It uses a stainless-steel rotor designed to remain in contact and alignment with a carbon graphite seal surface, forming a mechanical face seal.

How to size: select your shaft diameter and stern tube diameter from the variant options. Lasdrop lists Gen2 as available for shaft sizes from 1 inch to 5 inches (25mm to 125mm).

• Mechanical face seal design using a carbon graphite seal surface
• Ball-bearing drive system designed to maintain contact and alignment
• 316 marine grade stainless spring provides pressure to the seal surfaces
• Clamp/pressure housing secures without set screws
• Dual u-cup seals help prevent water passing the seal ring area
• Durable copolymer housing with a water-lubricated bearing for alignment
• Dual water injection ports, hardware included

Note: optional service kits are available separately (for example, rod seal replacement kits).
