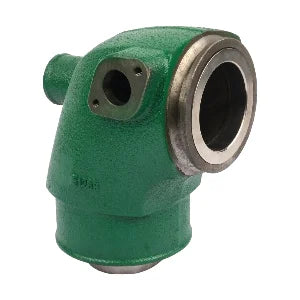

• MAR289 Recmar cast iron Volvo Penta exhaust elbow with green body, machined outlet ring and 38mm hose connection

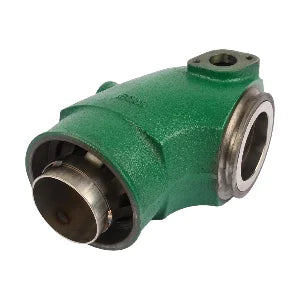

  • Rear view of MAR289 Volvo Penta exhaust elbow showing internal sleeve, top flange and side outlet
  • Side view of MAR289 Volvo Penta exhaust elbow

Volvo Penta | Recmar

Volvo Penta Exhaust Mixing Elbow 861289 / 851289 - 31/32/41/42/43/44/300 Diesel, 38mm | MAR289

MAR289

  • Free Shipping ✅

🚚 Dispatched in 1-3 Days

⏱️ 14 Day Return Policy

In stock

Stock levels update in real time, though occasional delays may occur. For availability confirmation, use live chat (orange icon, bottom right) or contact our customer service team.

£145.12 GBP
£145.12 GBP
Tax included. Shipping calculated at checkout.
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shop safely with us
💬 Ask a question about this product

By signing up you agree to receive marketing emails and text messages. View our privacy policy and terms of service for more info.

Product Specifications and Features

MAR289 is an aftermarket cast exhaust mixing elbow for selected Volvo Penta marine diesel engines. It replaces Volvo Penta 861289 and 851289 and is the later single-water-inlet elbow used across many 31, 32, 41, 42, 43, 44 and 300 series applications.

This elbow mixes cooling water into the exhaust stream and routes exhaust gases safely into the wet exhaust system. It is commonly fitted on turbocharged Volvo Penta diesel installations and is a critical corrosion-wear item in the exhaust circuit. The main buyer check on this part is the inlet style: 861289 is the later 38mm version, while older 860656 installations used a 32mm pipe layout. If replacing an earlier 860656 elbow, verify the hose, clamp and associated fittings before ordering.



Key Specifications

Spec Details
Recmar part number MAR289
Product type Marine exhaust mixing elbow / exhaust pipe elbow
Engine type Marine diesel
Primary OEM references 861289, 851289
Older related Volvo reference 860656
Material Heavy-duty cast metal elbow body
Water inlet style Single water inlet
Water inlet size 38 mm OD / approx. 29 mm ID
Exhaust discharge size approx. 102 mm ID / 106 mm OD
Nominal exhaust outlet family 4 inch wet exhaust
Typical use Wet exhaust / water injection elbow
Included Elbow only unless your supplier bundles related hardware separately



Engine Compatibility

Engine family Confirmed / commonly listed models
31 series AD31B, AD31D-A, AD31L-A, AD31P-A, AD31XD, MD31A, TAMD31B, TAMD31D, TAMD31L-A, TAMD31M-A, TAMD31P-A, TAMD31S-A, TMD31B, TMD31D, TMD31L-A
32 series KAD32P, KAD32P-A
41 series AD41B, AD41D, AD41L-A, AD41P-A, D41B, D41D, D41L-A, TAMD41B, TAMD41D, TAMD41H-A, TAMD41H-B, TAMD41L-A, TAMD41M-A, TAMD41P-A, TMD41B, TMD41D, TMD41L-A
42 series KAD42A, KAD42B, KAD42P-A, KAMD42A, KAMD42B, KAMD42P-A, TAMD42B, TAMD42WJ-A
43 series KAD43P-A, KAMD43P, KAMD43P-A, KAMD43P-B
44 & 300 series KAD44P, KAD44P-A, KAD44P-B, KAD44P-C, KAMD44P-A, KAMD44P-C, KAD300, KAD300-A, KAMD300, KAMD300-A
Additional catalog references Some catalog sources also associate 861289 with selected D5A / D7A genset installations; verify by engine serial and exhaust layout before listing for those applications



OEM and Cross References

Brand Part number
Volvo Penta 861289
Volvo Penta 851289
Volvo Penta 860656
Orbitrade 16289
HGE HGE1289
Crom 116026



Associated Parts Often Ordered With This Elbow

Part type Reference
Water input gasket 859002
Sealing ring / water circuit gasket 842913
Clamp 21325765 / 842993
Bellows 860396
Flange 844093
Mounting bolts 946544
Later hose for 861289 943477
Earlier hose for 860656 943476



Important Fitment Notes

Check before ordering Why it matters
861289 vs 860656 861289 is the later 38 mm single-inlet elbow; 860656 is the older 32 mm version
31 / 41 series conversions If changing from the older 860656 arrangement, hose and clamp changes may be required
Elbow only vs full kit Many installs also need 859002, 842913, clamp 21325765 / 842993, and bellows 860396
Serial-number verification Essential on older Volvo diesel installations where exhaust updates may have been fitted over time



Structured Data / Attributes

Field Value
Brand Recmar
MPN MAR289
Product type Exhaust mixing elbow
Alternate name Exhaust pipe elbow / water injection elbow
Material Cast metal
Engine type Marine diesel
Water inlet Single inlet
Water inlet size 38 mm
Exhaust outlet family 4 inch
OEM references 861289, 851289
Related older OEM 860656
Aftermarket references 16289, HGE1289, 116026
Condition New aftermarket replacement
