8-Channel Marine Amplifier Kicker Genuine, 800W Class D Full-Range, OEM 48KXMA8008 / SKU KA48KXMA8008

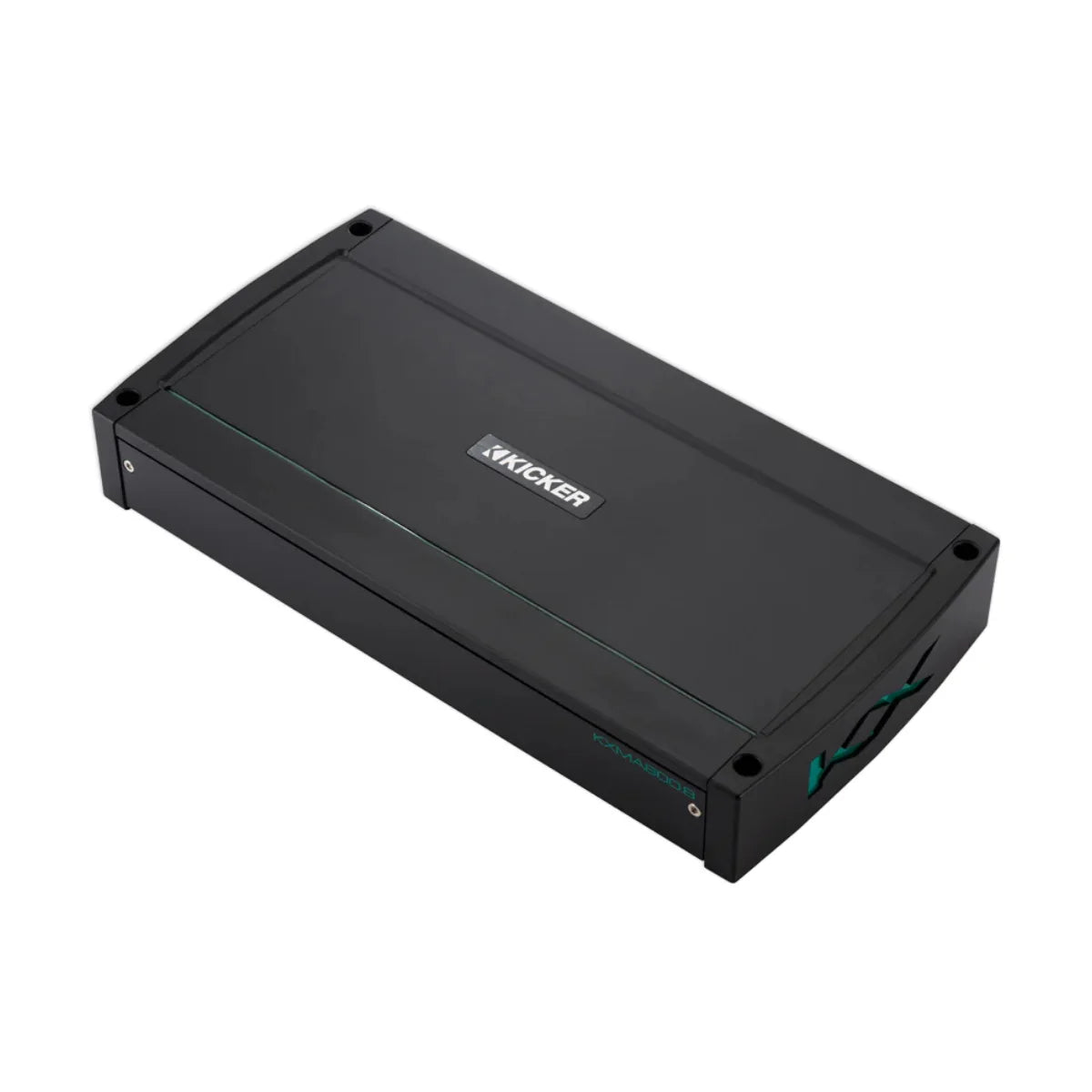

Genuine KICKER REAL MARINE™ KXMA800.8 (model 48KXMA8008) is an 800-watt, eight-channel Class D full-range amplifier engineered for harsh marine environments.

• RMS power (14.4V, ≤1% THD+N): 50W x 8 @ 4Ω; 100W x 8 @ 2Ω; 200W x 4 bridged @ 4Ω
• Impedance capability: 2Ω stereo / 4Ω bridged
• Frequency response: 10Hz–20kHz

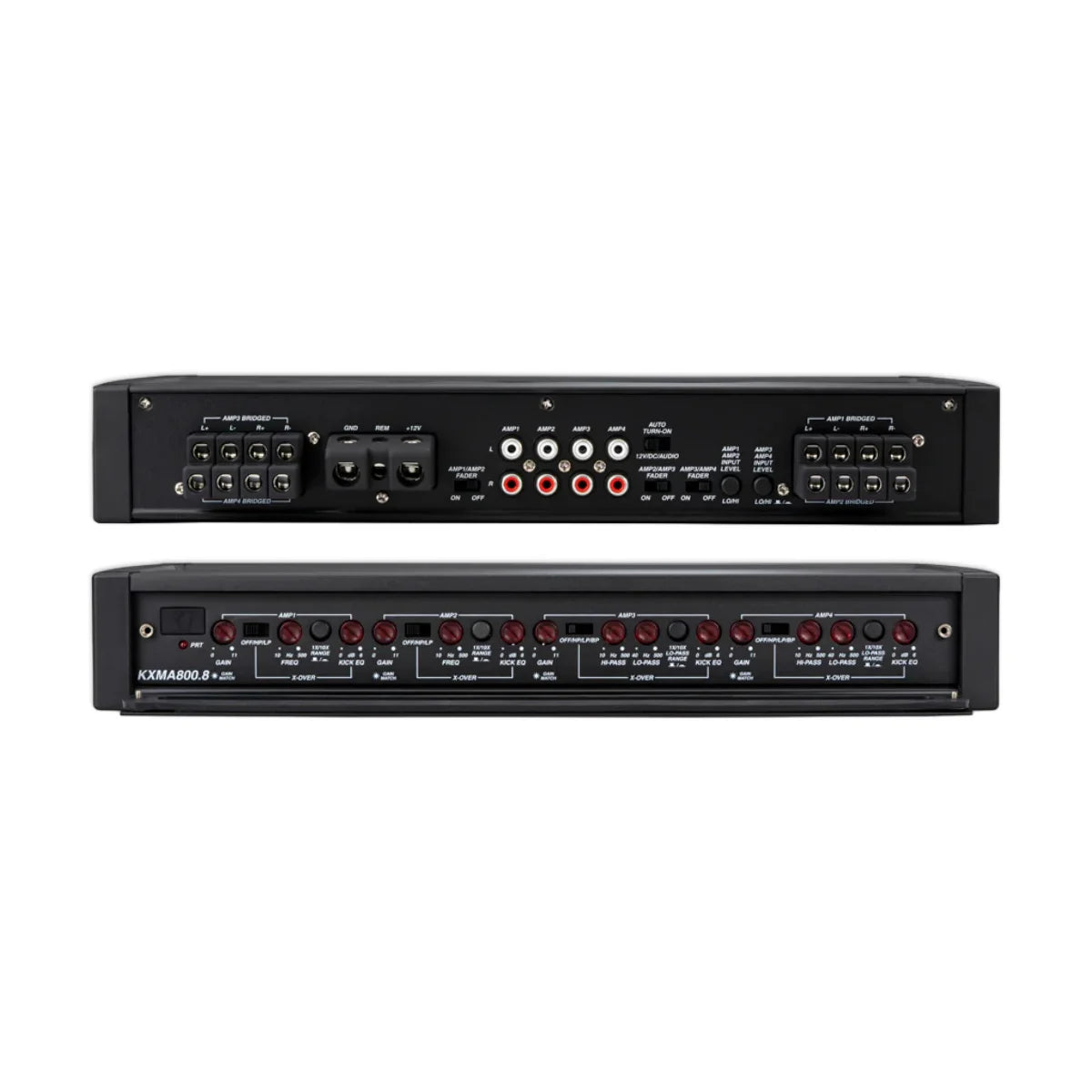

• Tuning: 24dB/oct active crossovers (Amp 1 & 2: OFF/HP/LP 10–5,000Hz with 10x switch; Amp 3 & 4: OFF/HP/LP/BP, HP 10–500Hz, LP 40–5,000Hz with 10x switch)
• Bass boost: KickEQ™ 0–6dB @ 40Hz (amps 1–4)
• Inputs & integration: high-level 250mV–10V and low-level 125mV–5V with FIT2™ circuitry, DSP-controlled preamp and Gain Match LED indicators
• Marine-ready build: conformal-coated PCB, anti-corrosive terminals, 304-stainless hardware, ABYC/NMMA-compliant power connections and gasket-sealed control cover
• Dimensions: 14-3/4" L x 8-5/16" W x 2-1/8" H (37.4 x 21.0 x 5.4 cm)

Installation notes: requires an external 120A fuse and 4-gauge power/ground wiring. Automatic turn-on supports +12V remote, DC offset or signal-sense audio modes.

In the box: KXMA800.8 customer information card, KICKER power chart, hardware pack (3mm hex key, stainless mounting hardware and RCA covers) and birth certificate.

OEM reference: 48KXMA8008. TMP Global SKU: KA48KXMA8008. Confirm ratings, wiring and fitment before ordering.
